Energy-Saving Non-Drying Continuous Production Compound Fertilizer Granulation Line for NPK Fertilizer

Traditional fertilizer processing demands high energy consumption due to massive rotary dryers. As a premier fertilizer plant manufacturer, we have engineered the revolutionary Energy-Saving Non-Drying Compound Fertilizer Granulation Line to eliminate this costly step. This advanced low energy fertilizer plant utilizes ambient-temperature dry press technology, bypassing fluid beds or fuel-burning equipment entirely. Driven by our heavy-duty non-drying fertilizer granulator, this complete compound fertilizer line handles raw materials at room temperature, delivering hard, high-density granules while slashing your factory electricity and fuel expenses.

• Ultimate Thermal Cost Savings: By eliminating the rotary dryer and cooling drum, this no dryer granulation process slashes operational gas and coal consumption to absolute zero.
• Instant Compaction & Shaping: High-pressure double rollers achieve immediate dry agglomeration, allowing raw materials to be molded and packed in a continuous, rapid cycle.
• Compact Plant Footprint: The absence of bulky thermal systems reduces the required floor space by 40%, significantly minimizing your initial factory infrastructure investment.
• Heavy-Duty Structural Longevity: Built for 24/7 continuous industrial operation, the main non-drying fertilizer granulator features enclosed oil-bath lubrication and hardened alloy gears.

Unlike wet granulation systems, this low energy fertilizer plant operates on a streamlined, dry-powder physical compaction framework:

1. Precision Feed Dosing: The continuous automated batching unit utilizes weight-loss feeders to systematically dose raw urea, ammonium chloride, and potash powders based on your commercial target formulas.
2. Intensive Dry Blending: A heavy-duty horizontal double-shaft mixer quickly agitates the dry ingredients, ensuring a completely homogeneous powder matrix before the mixture enters the compaction stage.

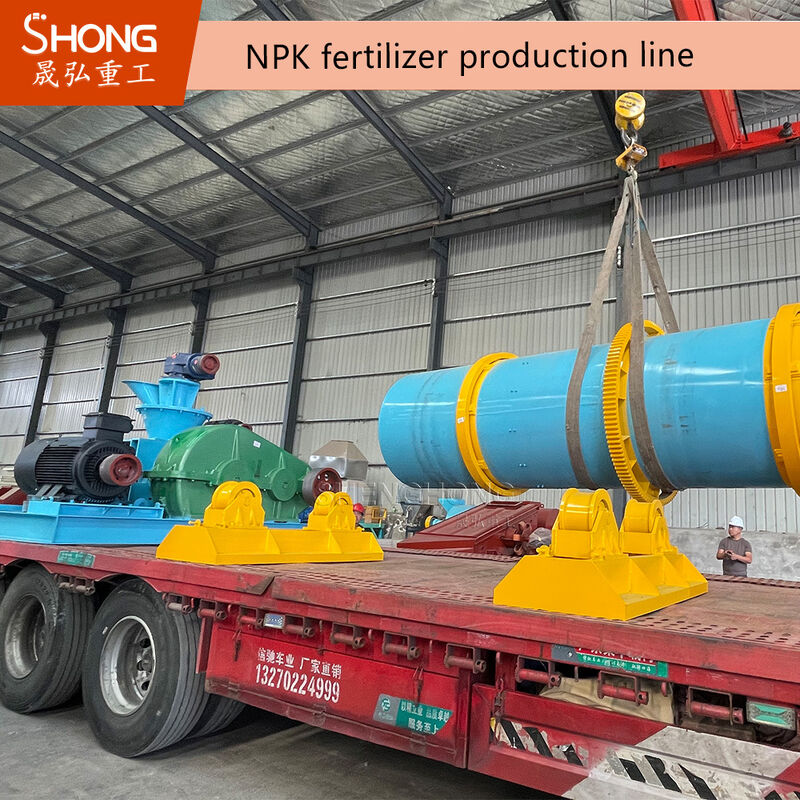

3. Low-Temperature Roller Compactor: The mixed dry powder drops directly into the non-drying fertilizer granulator. Two internal rollers exert massive hydraulic force, compressing the loose powder into ultra-dense solid sheets at room temperature.
4. Mechanical Granule Breaking: The solid compressed sheets are instantly transferred to an under-roller breaking system, where customized claw-style teeth mechanically crush and slice the flakes into raw granular particles.
5. Sizing & Multi-Stage Screening: The broken particles enter a high-frequency rotary sifter. Standard commercial granules are separated and directed forward, while fine dust and oversized pieces are automatically caught by a recycling loop.
6. Eco-Friendly Closed-Loop Recirculation: Undersized powder and crushed oversized materials are fed right back into the main hopper via an enclosed belt conveyor, achieving a 100% material utilization rate with zero waste.
7. Micro-Membrane Granule Coating: Qualified particles enter a compact rotary coating drum. A thin layer of anti-caking oil or protective glazing powder is applied to ensure the granules remain free-flowing during maritime shipping.
8. Digital Quantitative Bagging: The final coated compound fertilizer moves into an automated packing station, where it is measured, filled into 25kg/50kg woven bags, and thread-sealed for immediate commercial shipping.
